Preassembled aquarium LSS.1,000–2,500 L

Aquarium volume

1,000–2,500 L

Max. feed

250 g/day

Max. flow

20,000 L/h

Footprint

1.3 × 0.7 m

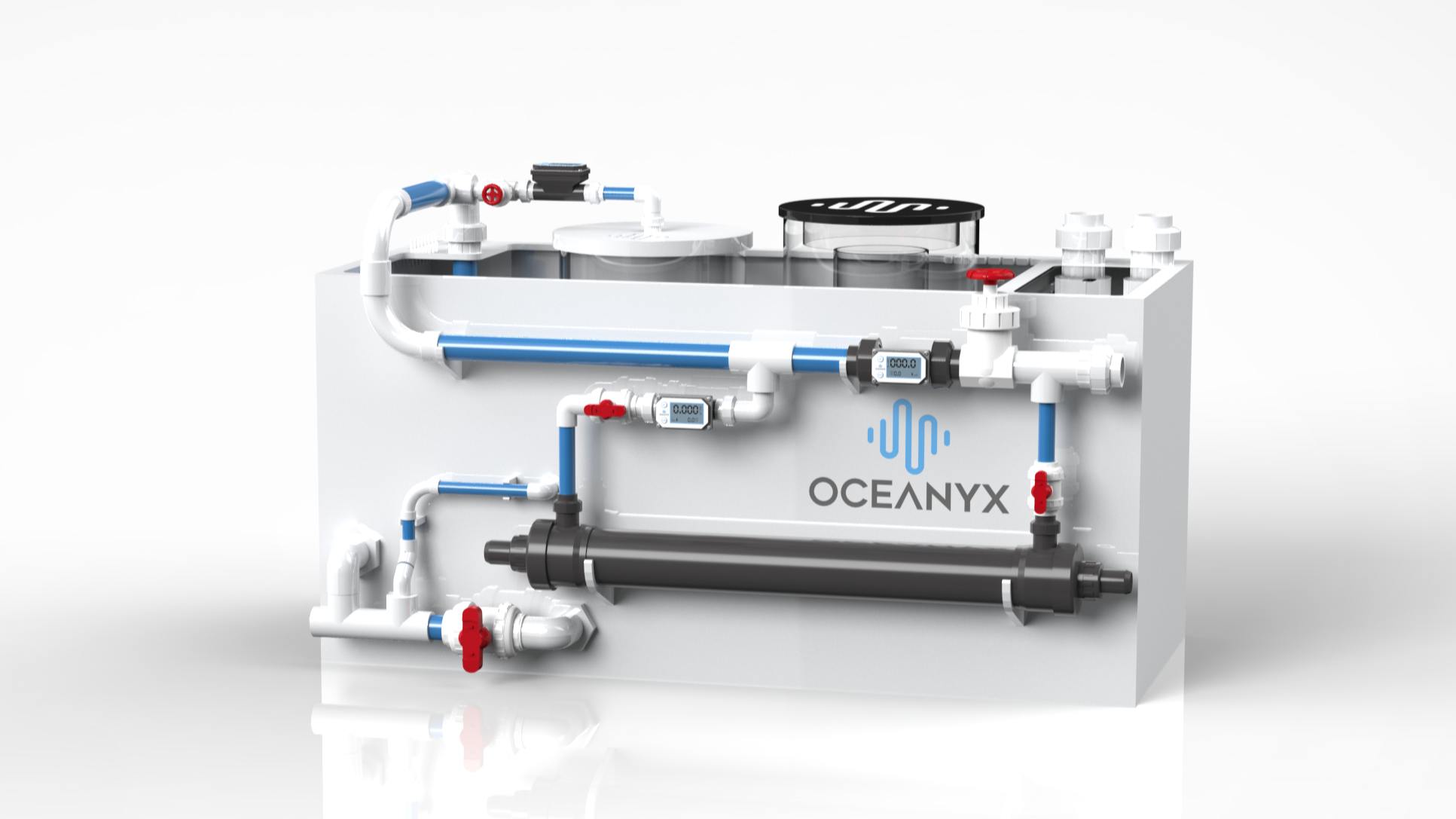

A standalone preassembled platform for installation away from the aquarium, integrating mechanical, biological and UV treatment with foam fractionation and variable-speed circulation. One frame, one connection set, accessible for routine operation and maintenance.

Specification

Equipment

Mechanical filter	200 µm honeycomb sock filters
Biological filtration	Acrylic trickle filter, 400 × 400 × 360 mm
Foam fractionator	450 × 330 × 630 mm, 24 V DC, 60 W, DC-adjustable water / airflow
UV	40 W, PVC housing
Circulation	Variable speed, 24 V DC, 180 W, 6 m head
Max. flow	20,000 L/h
Flow meter	Digital display

System data

Model	ONX-LSS-FS-X3
Aquarium volume	1,000–2,500 L
Recommended maximum feed	250 g/day
Equipment dimensions	1,300 × 695 × 740 mm (L × W × H)
Sump capacity	380 L
Dry / operating weight	110 / 490 kg
Max. power consumption	215 W
Supply	220 V / 50 Hz
