Preassembled aquarium LSS.2,500–7,500 L

Aquarium volume

2,500–7,500 L

Max. feed

500 g/day

Return flow

11 m³/h

Footprint

1.92 × 1.21 m

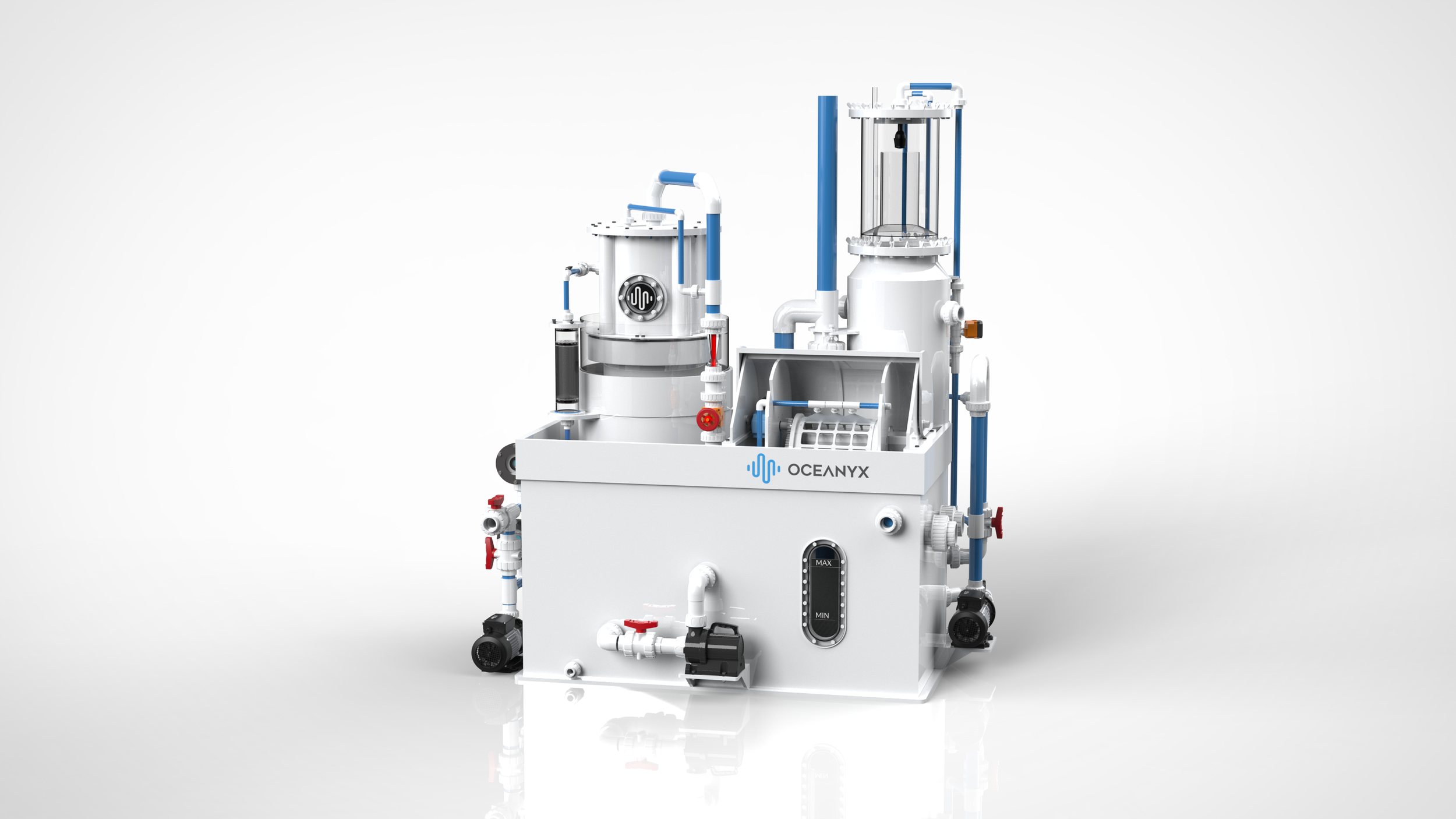

A plant-room platform integrating rotary drum filtration, moving-bed biological treatment, foam fractionation and UV on a single frame, with separate return and circulation pumps. Sized to the aquarium's stocking, feed load and hydraulic duty.

Specification

Equipment

Mechanical filter	Rotary drum filter, 150 µm PET screen, 24 V DC drive, electronic backwash valve
Biological filtration	MBBR 39 L media volume / trickle tower 76 L
Foam fractionator	PP body, Ø400 × 2,100 mm, 0.55 kW AC fractionator pump
UV	Dual PVC closed vessel, 42 W
Return pump	0.37 kW AC, 10 m head, 11 m³/h
Circulation pump	0.37 kW AC, 10 m head, 11 m³/h
Flow meter	Digital display

System data

Model	ONX-LSS-FS-X5
Aquarium volume	2,500–7,500 L
Recommended maximum feed	500 g/day
Equipment dimensions	1,920 × 1,210 × 2,110 mm (L × W × H)
Sump capacity	1,000 L
Dry / operating weight	120 / 650 kg
Max. power consumption	1.07 kW
Supply	220 V / 50 Hz
